The Radical Wireless tiny sparrow TX (transmitter) and the tiny sparrow RX (receiver) support DMX/ RDM (RX only). Both are based on Lumenradio’s award winning CRMX technology.
The next lines will help you to set up the unit and get you through troubleshooting.
Start
UserInterface
Status LED
Technical Specs

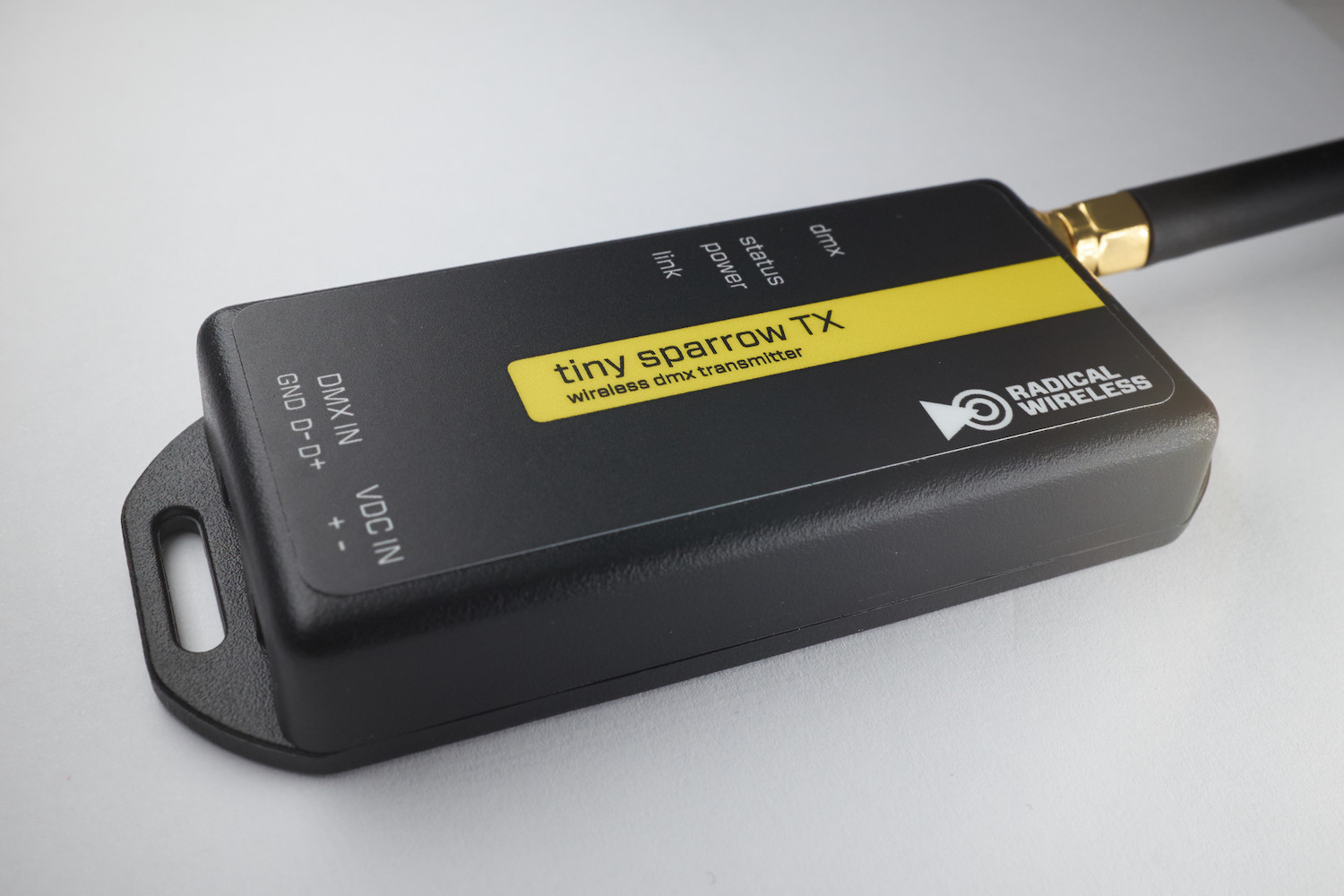

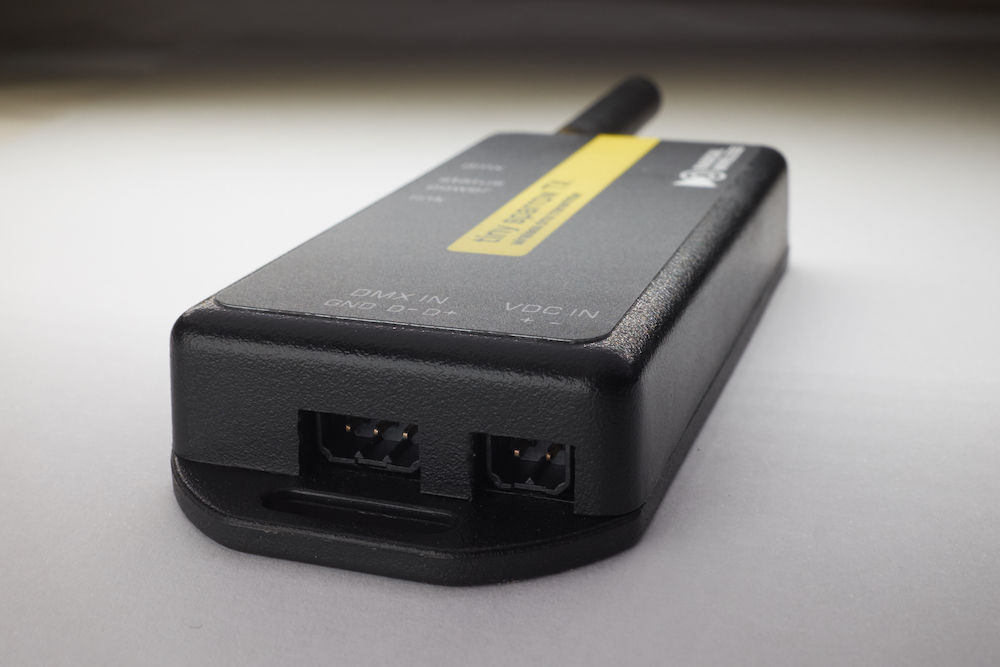

tiny sparrow TX
User Interface & LEDs:
| link | button for link / unlink receivers - to press use a small torx 5 or similar |
| power | Blue LED - lights up when power is connected |
| status | Blue LED - shows different states of status like: |
| linking, unlinking or receiving DMX signal | |
| dmx | Green LED - lights up when receiving correct DMX |
function of the Status LED
(text: class:0rem style:margin-bottom:0rem; text:Transmitter is linking available receiver:)
(text: class:0rem style:margin-bottom:0rem; text:Active radio link, no DMX data present:)
(text: class:0rem style:margin-bottom:0rem; text:Active radio link, DMX data present:)
(text: class:0rem style:margin-bottom:0rem; text:Transmitter is unlinking receiver:)
Technical Specs
| | | |
|:———|:——————————-|
| PowerIN | 6-36VDC range or USB (5VDC balanced - USB power banks are not fully supported) |
| power consumption | ~250mA |
| temp. working range | -20°C - +40°C |
| radio signal range | ~400m, line of sight |
| IP rating | IP20 |
| antenna connector | RP-SMA female |
| antenna | RP-SMA male, 2.5dBi |
| housing | ABS |
| connector | 2pin male Phoenix PTSM |
DMX
| | | |
|:———|:——————————-|
| DMX IN | DMX512-A (ANSI E1.11) |
| connector | 3pin male Phoenix PTSM |
Downloads
| | | |
|:———|:——————————-|
| datasheet & manual | tiny sparrow TX - ENG - v1.2 |
