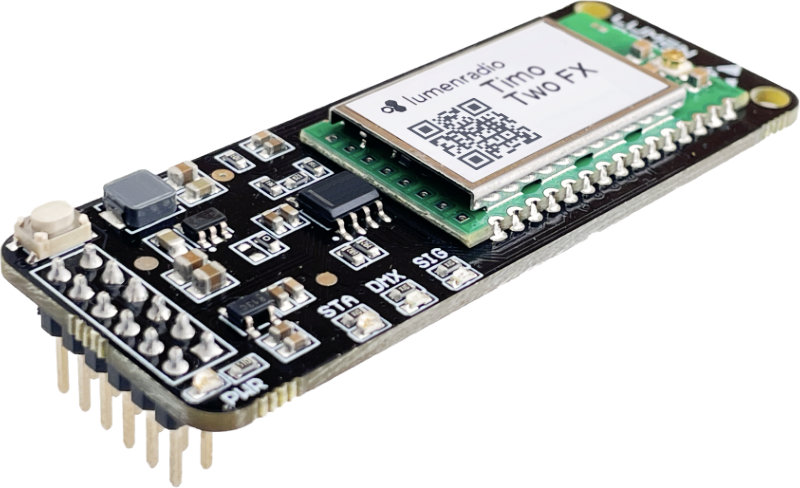

LUMEN CARD

Our LUMEN CARD module enables wireless control of DMX luminaires and LED dimmers through the LumenRadio CRMX protocol. Despite its powerful functionality, the module is extremely compact and can be easily installed in own luminaires or DMX lighting devices.

With its direct access to the on-board user interface, like LINK button or different LEDs, the LUMEN CARD features also an full comprehensive external connectivity to all major functions the Lumenradio TiMoTwo module has to offer.
The module is also well suited for use in more complex control systems or just to add wireless DMX to your old lighting fixture or device.
The module’s small size makes it ideal for applications where space is an issue. Our customers can rely on the LUMEN CARD module to provide a reliable and powerful wireless control solution.

  • Cognitive coexistence – dynamically avoids occupied 2.4GHz frequencies
  • DMX fidelity and frame integrity
  • DMX frame rate and frame size auto sensing
  • Fixed 5 ms end-to-end latency
  • Connectivity based on Bluetooth Smart (BLE), allowing for easy connection from any phone or tablet
  • Receives CRMX2, CRMX Classic, W-DMX G3, G4, G4S, G5
  • Transmit CRMX Classic, W-DMX G3 or G4S
  • on-board Settings are also end-user changeable via the LumenRadio’s Toolbox app
  • A standard 2.54mm pitch header for external connection

What’s in the box?

  • LUMEN CARD module
  • 2.54 pitch header

Interested to buy? Get in touch with us.
